T120d/T128d
塔式標準服務器

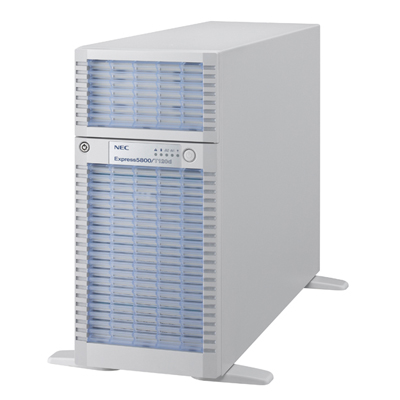

NEC Express5800/T120d/T128d
- 最新的Intel Xeon E5-2400系列處理器
- 最大384GB的DDR3高速內存
- 采用80 PLUS® 高效節能電源
詳細參數
|
T120d |
|
|
規格 / 高度 |
塔式 / 5U機架 |
|---|---|
|
CPU 數量 |
1 到 2 |
|
CPU型號 |
Intel® Xeon® Processor E5-2403 (1.80 GHz/4-core/10 MB) |
|
Intel® Xeon® Processor E5-2407 (2.20 GHz/4-core/10 MB) |
|
|
Intel® Xeon® Processor E5-2420 (1.90 GHz/6-core/15 MB) |
|
|
Intel® Xeon® Processor E5-2430 (2.20 GHz/6-core/15 MB) |
|
|
Intel® Xeon® Processor E5-2450 (2.10 GHz/8-core/20 MB) |
|
|
Intel® Xeon® Processor E5-2470 (2.30 GHz/8-core/20 MB) |
|
|
內存類型 |
DDR3-1600 ECC LV RDIMM |
|
內存插槽數量 |
12 |
|
最大內存容量 |
384 GB |
|
內部硬盤類型 |
熱插拔 2.5-inch SAS HDD |
|
熱插拔 2.5-inch SATA HDD |
|
|
熱插拔 2.5-inch SAS SSD |
|
|
熱插拔 3.5-inch SATA HDD |
|
|
非熱插拔 3.5-inch SATA |
|
|
內部硬盤架數 |
8 到 24 （2.5-inch）（需要選配一個硬盤籠） |
|
4 到 8 （3.5-inch）（需要選配一個硬盤籠） |
|
|
最大內部硬盤容量 |
32 TB |
|
可移動存儲介質 |
1個光驅, 2個內置5英寸磁帶機 |
|
擴展槽 |
1 PCIe x16 Gen 3 |
|
2 PCIe x8 Gen 3 |
|
|
1 PCIe x4 Gen 2 |
|
|
1 PCIe x1 Gen 2 |
|
|
網絡控制器 |
2 1000BASE-T plus 1 100BASE-TX用于存儲 |
|
冗余電源/風扇 |
可選，熱插拔 |
|
電源 |
熱插拔 450 W, 800 W |
|
非熱插拔 700 W |
|
|
服務器管理 |
EXPRESSSCOPE Engine 3 |
|
接口 |
1* VGA, 1到2 串行接口,6* USB 2.0 ( 3 *內部 USB 2.0), 2 *LAN, 1 *管理 LAN |
|
尺寸（WDH） /最大重量 |
200.0 x 599.0 x 438.0 mm / 7.8 x 23.5 x 17.2 in |
|
33 kg / 72.75 lbs. |
|
|
溫度/濕度 (無冷凝) |
工作狀態: 10 to 40°C / 50 to 104°F , 20 to 80% |
|
非工作狀態: -10 to 55°C / 14 to 131°F, 20 to 80% |
|
|
操作系統/虛擬化軟件 |
Microsoft® Windows Server® 2003 R2, Standard Edition |
|
Microsoft® Windows Server® 2003 R2, Standard x64 Edition |
|
|
Microsoft® Windows Server® 2003 R2, EnterpriseEdition |
|
|
Microsoft® Windows Server® 2003 R2, Enterprise x64 Edition |
|
|
Microsoft® Windows Server® 2008 Standard |
|
|
Microsoft® Windows Server® 2008 Standard (x64) |
|
|
Microsoft® Windows Server® 2008 Enterprise |
|
|
Microsoft® Windows Server® 2008 Enterprise (x64) |
|
|
Microsoft® Windows Server® 2008 R2 Standard |
|
|
Microsoft® Windows Server® 2008 R2 Enterprise |
|
|
Microsoft® Windows Server® 2012 Standard |
|
|
Microsoft® Windows Server® 2012 Datacenter |
|
|
Red Hat Enterprise Linux 1 |
|
|
Red Hat Enterprise Linux(EM64T) 1 |
|
|
VMware® ESX™i 4 |
|
|
VMware® ESX™i 5 |
|
