GT110e/GT118e
塔式標準服務器

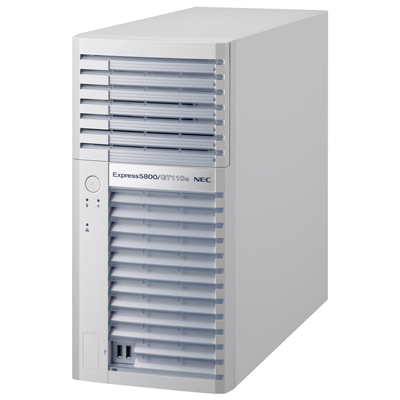

NEC Express5800/GT110e/GT118e
- 26L緊湊機箱
- 最新的Intel Xeon E3-1200 v2系列處理器
- 最大32GB的DDR3高速內存
- 滿配時噪音不超過36.8dB
詳細參數
|
外形 / 高度 |
迷你塔式 / 4U機架 |
|---|---|
|
CPU 數量 |
1 |
|
CPU型號 |
Intel® Celeon® Processor G1610 (2.60 GHz/2-core/2 MB) |
|
Intel® Pentium® Processor G2020 (2.90 GHz/2-core/3 MB) |
|
|
Intel® Xeon® Processor E3-1220v2 (3.10 GHz/4-core/8 MB) |
|
|
內存類型 |
DDR3-1600 ECC UDIMM |
|
內存插槽數量 |
4 |
|
最大內存容量 |
32 GB |
|
內部硬盤類型 |
非熱插拔 2.5-inch SAS HDD |
|
非熱插拔 2.5-inch SATA HDD |
|
|
非熱插拔 2.5-inch SAS SSD |
|
|
非熱插拔 3.5-inch SATA HDD |
|
|
內部硬盤架數 |
4 |
|
最大內部硬盤容量 |
16 TB |
|
可移動存儲介質 |
1個光驅, 2個內置磁帶機 |
|
擴展槽 |
1 PCIe x16 Gen 3, 2 PCIe x4 Gen 2, 1 32 bit/33 MHz PCI |
|
網絡控制器 |
2 1000BASE-T plus 1 100BASE-TX 管理用 |
|
電源 |
400 W |
|
服務器管理 |
EXPRESSSCOPE Engine 3 |
|
接口 |
1* VGA, 1 to 2串行接口,6* USB 2.0 ( 2 *內部 USB 2.0), 2 *LAN, 1 *管理 LAN |
|
尺寸（WDH） /最大重量 |
175.0 x 418.0 x 364.0 mm / 6.9 x 16.5 x 14.3 in |
|
18 kg / 38.58 lb |
|
|
溫度/濕度 (無冷凝) |
工作狀態: 10 to 40°C / 50 to 104°F , 20 to 80% |
|
非工作狀態: -10 to 55°C / 14 to 131°F, 20 to 80% |
|
|
操作系統/虛擬化軟件 |
Microsoft® Windows Server® 2003 R2, Standard Edition |
|
Microsoft® Windows Server® 2003 R2, Enterprise Edition |
|
|
Microsoft® Windows Server® 2003 R2, Standard x64 Edition |
|
|
Microsoft® Windows Server® 2003 R2, Enterprise x64 Edition |
|
|
Microsoft® Windows Server® 2008 Standard |
|
|
Microsoft® Windows Server® 2008 Enterprise |
|
|
Microsoft® Windows Server® 2008 Standard (x64) |
|
|
Microsoft® Windows Server® 2008 Enterprise (x64) |
|
|
Microsoft® Windows Server® 2008 R2 Standard |
|
|
Microsoft® Windows Server® 2008 R2 Enterprise |
|
|
Microsoft® Windows Server® 2012 Standard |
|
|
Microsoft® Windows Server® 2012 Datacenter |
|
|
Red Hat® Enterprise Linux® 5 |
|
|
Red Hat® Enterprise Linux® 6 |
|
|
VMware® ESX™i 5 |
