R110e-1E
機架式標準服務器(1U)

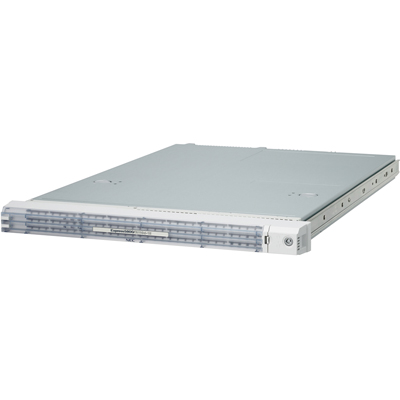

NEC Express5800/R110e-1E
- 最新的Intel Xeon E3-1200v2系列處理器
- 最大32GB的DDR3高速內存
- 采用80 PLUS® 高效節能電源
詳細參數
|
R110e-1E |
|
|
CPU 數量 |
1 |
|---|---|
|
CPU型號 |
Intel® Pentium® Processor G2020 (2.90 GHz/ 2-core/3 MB) |
|
Intel® Xeon® Processor E3-1220Lv2 (2.30 GHz/2-core/3 MB) |
|
|
Intel® Xeon® Processor E3-1220v2 (3.10 GHz/4-core/8 MB) |
|
|
Intel® Xeon® Processor E3-1265Lv2 (2.50 GHz/4-core/8 MB) |
|
|
Intel® Xeon® Processor E3-1270v2 (3.50 GHz,/4-core/8 MB) |
|
|
內存類型 |
DDR3-1600 ECC UDIMM |
|
內存插槽數量 |
4 |
|
最大內存容量 |
32 GB |
|
內部硬盤類型 |
熱插拔 2.5-inch SAS HDD |
|
熱插拔 2.5-inch SATA HDD |
|
|
熱插拔 2.5-inch SAS SSD |
|
|
熱插拔 3.5-inch SATA HDD |
|
|
內部硬盤架數 |
4( 3.5-inch) |
|
6 到8( 2.5-inch) |
|
|
最大內部硬盤容量 |
16 TB |
|
可移動存儲介質 |
1個光驅 |
|
擴展槽 |
2 PCIe x8 Gen 2 |
|
網絡控制器 |
2 1000BASE-T plus 1 100BASE-TX管理用 |
|
電源 |
400 Watt |
|
服務器管理 |
EXPRESSSCOPE Engine 3 |
|
接口 |
1* VGA, 1 to 2串行接口,6* USB 2.0 ( 2 *內部 USB 2.0), 2 *LAN, 1 *管理 LAN |
|
尺寸（WDH） /最大重量 |
444.0 x 615.2 x 43.6 mm / 17.5 x 24.2 x 1.7 in |
|
18 Kg / 39.68 lb |
|
|
溫度/濕度 (無冷凝) |
工作狀態: 10 to 40°C / 50 to 104°F , 20 to 80% |
|
非工作狀態: -10 to 55°C / 14 to 131°F, 20 to 80% |
|
|
操作系統/虛擬化軟件 |
Microsoft® Windows Server® 2003 R2, Standard Edition |
|
Microsoft® Windows Server® 2003 R2, Standard x64 Edition |
|
|
Microsoft® Windows Server® 2003 R2, EnterpriseEdition |
|
|
Microsoft® Windows Server® 2003 R2, Enterprise x64 Edition |
|
|
Microsoft® Windows Server® 2008 Standard |
|
|
Microsoft® Windows Server® 2008 Standard (x64) |
|
|
Microsoft® Windows Server® 2008 Enterprise |
|
|
Microsoft® Windows Server® 2008 Enterprise (x64) |
|
|
Microsoft Windows Server 2008 R2 Standard |
|
|
Microsoft Windows Server 2008 R2 Enterprise |
|
|
Microsoft® Windows Server® 2012 Standard |
|
|
Microsoft® Windows Server® 2012 Datacenter |
|
|
Red Hat Enterprise Linux 5 |
|
|
Red Hat Enterprise Linux 5 (EM64T) |
|
|
Red Hat Enterprise Linux 6 |
|
|
Red Hat Enterprise Linux 6 (EM64T) |
|
|
VMware® ESX™i 5 |
|
